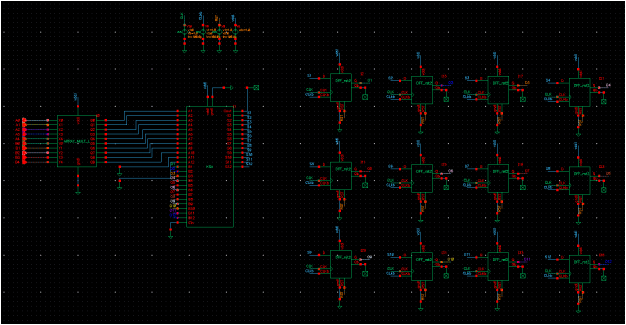

A MAC array or as known as “Multiply-accumulate” operator is an important operating circuit used in arithmetic applications such as in DSP. As part of a VLSI course project, I designed a 10-bit MAC Array in Cadence. A layout of the MAC Unit is shown below as well.
